HD4916B Bottomer Machine
Operating condition
Working hour : 22 hours/day Design temperature : 0~40℃ Design humidity : MAX. 95% Number required : 1 unit
Model name : HD4916B
Performance
Speed : 80~120 bags/min
(Depends on paper quality, number of ply and operators’ skill.)
Bag length : 380~825mm Bag width : 350~600 mm Bottom width : 90~160mm Distance between bottom centers : 290~650mm Valve sheet length : 120~250mm
Outside reinforcement : (300~600mm) x (70~160)mm (L×W) Main drive motor : 35kw
Total weight : 40T
Size of whole set : 27m×4.0.m×2.05m ( L×W×H) Valve sheet reel diameter : Max.1,300mm
Pumping rate of vacuum pump : 250m³/h
Specifications
1) Cement paper bag making machine.
2) Prompt and professional after sale service.

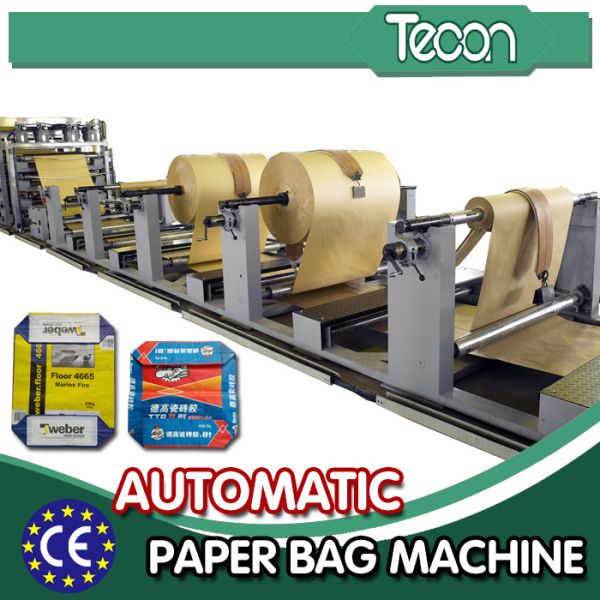

3) High speed Automatic Cement Paper Bag Making Machine is professional machine for valve bottom pasted bag. The bags are widely used for packing powder materials or particulate materials, such as cement, chemical raw material and grains.
Vacuum degree : 20mba
| model | bags length(mm) | bags width(mm) | distance between bottom centers(mm) | dimension of valve sheet(mm) | speed (bags/min) | size of the machine(m) | main of the machine(m) | main drive motor(km) | total weight |
| HD4916B | 520-880 | 430-620 | 90-160 | 420-780 | 100-250*120-170 | 100-120 | 23*2.3*1.9 | 33 | 32 |
| HD4916BD | 370-880 | 380-620 | 90-160 | 270-780 | 100-250*120-170 | 60-80 | 23.5*2.3*1.8 | 33 | 40 |
HD4916B Bottomer
| Working speed | 80~130 bags/min |
| Bag width | 420~600 mm |
| Bag length | 520~880mm |
| Bottom width | 90~130mm |
| Distance between bottom centers | 420~780mm |
| Valve sheet length | 100~250mm |
| Valve sheet width | 120~170mm |
| Main drive motor | 33kw |
| Total weight | 22.7T |
